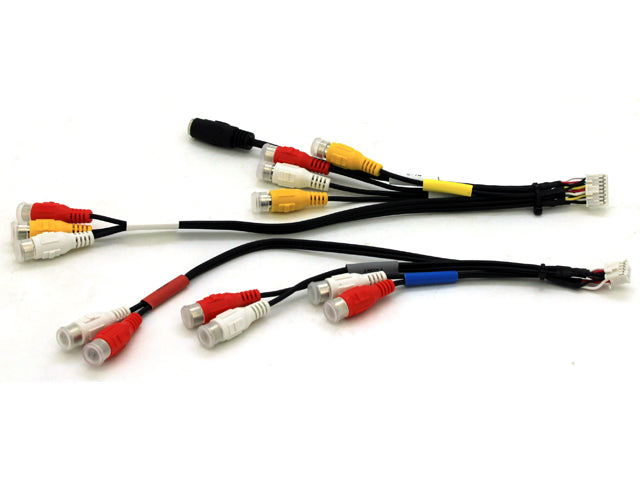

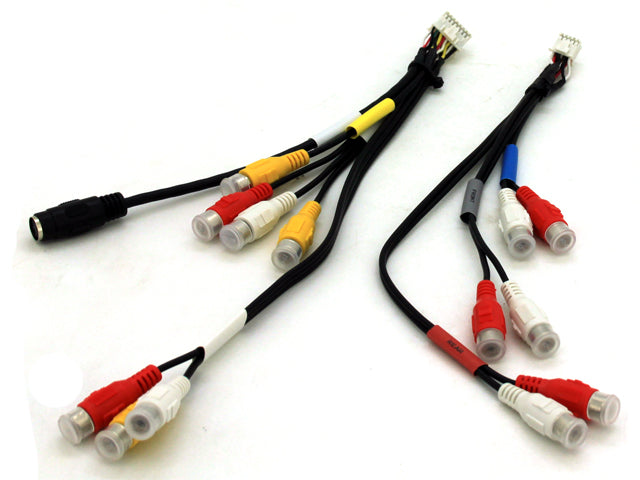

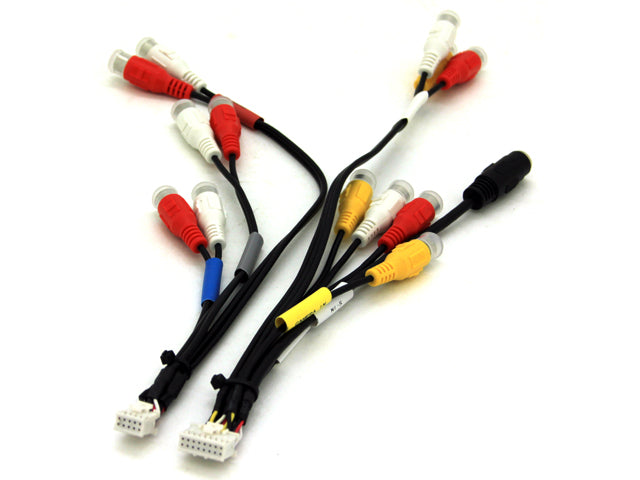

Alpine IVA-W502E 10/16-Pin AV Connector – RCA Audio & Video Adapter

Upgrade or replace your Alpine IVA-W502E AV connector with this 10/16-pin adapter, designed for seamless RCA audio and video integration.

Compatible Models:

✔ Alpine IVA-W502E
✔ Alpine IVA-W505R

Connection Features:

🔹 RCA Inputs/Outputs:
• Subwoofer Output (L+R) – Deep bass and non-fading audio support
• Front Output (L+R) – High-quality audio for front speakers
• Rear Output (L+R) – Audio for rear speakers
• AUX Input (L+R+Video) – Connect external audio and video sources
• AUX Output (L+R+Video) – Send audio and video signals to external devices

🔹 Additional Features:
• Camera Input – For rearview camera integration
• DIN Connector: S-IN – For additional device control
